5.9.0 - Preferences

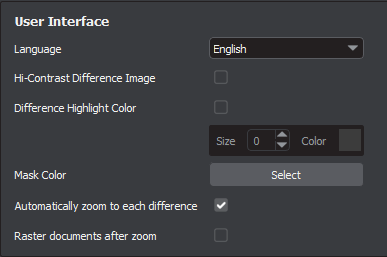

User Interface


  • Language: Default is English, also GlobalVision also supports Chinese, Czech, French, German, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Slovenian, and Spanish.

  • Hi-Contrast Difference Image: Displays differences between Master and Sample images in high contrast.

  • Difference Highlight Color: If checked, this option highlights Graphics Inspection differences in the mask of customizable color and size. Re-inspect for the changes to take effect.


  • Mask Color: This option lets the user set the mask color, with the ability to pick screen or custom colors.

  • Automatically zoom to each difference: If checked, the selected difference, barcode, or Braille region is zoomed in, instead of just highlighted.

  • Raster documents after zoom: If checked, Barcode, Text, or Spelling Inspection files raster automatically to add clarity and less pixelation.

Scanner Settings


  • Show Scanner interface: If checked, the application goes through the scanner software while scanning. If un-checked, the scanner software is not displayed.

  • Color Library: Select the preferred color library from the list, based on the connected color-calibrated GlobalVision scanner.

Measurement


  • Default unit: Choose your unit in which lines or rectangles shall be drawn using the Measurement Tool.

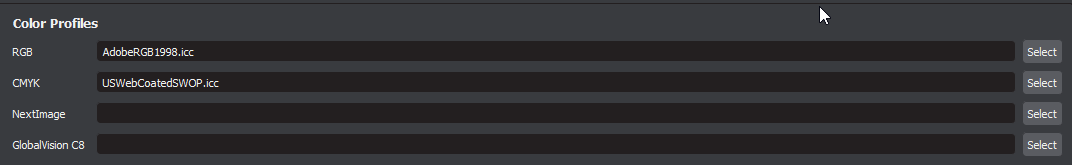

Color Profiles


  • RGB Profile: RGB Profile is used to display the color space in the user interface. The default profile is AdobeRBG1998.icc.

  • CMYK Profile: CMYK Profile is used to display the color space in the user interface. The default profile is USWebCoatedSWOP.icc.

  • NetImage Profile: The color calibration file for the connected NextImage scanner(to be used in conjunction with Color Inspection Mode).

  • GlobalVision C8 Profile: The color calibration file for the connected GlobalVision C8 scanner (to be used in conjunction with Color Inspection Mode).

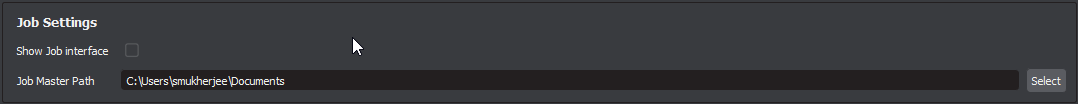

Job Settings


  • Show Job Interface: If checked, this option automatically loads the Job Wizard whenever the application is opened, or the interface is reset.

  • Job Master Path: Set default path loaded when selecting master files on the Master & Sample Selection screen of the Job Wizard.

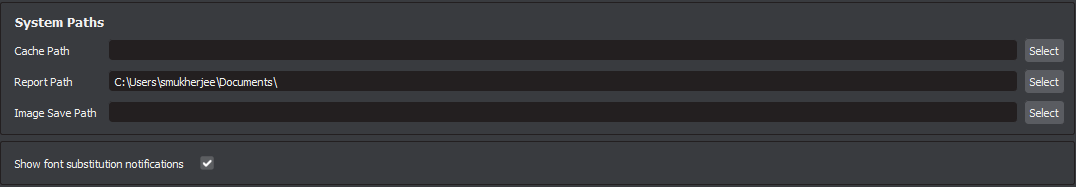

System Paths


  • Cache Path: Set where data is stored by the application.

  • Report Path: Set the location of where generated reports are to be saved.

  • Image Save Path: Set default path while saving images.

  • Show font substitution notifications: Ability to show or hide the font substitution popup message from the UI. By default, set to show.
