Loading Files for Graphics Inspection

Loading files for Graphics Inspection

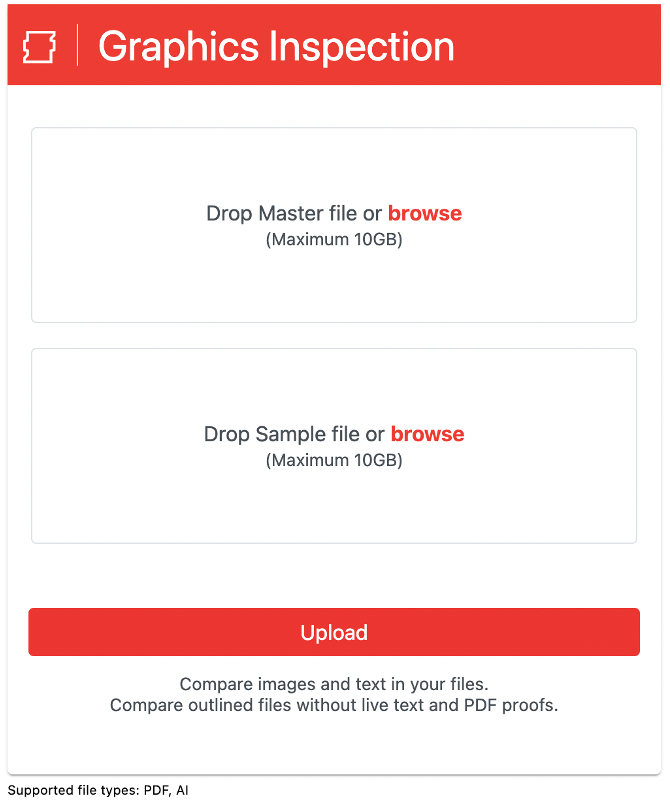

Click the Graphics Inspection icon on top of the toolbar to load and compare master and sample image files pixel by pixel. The following screen displays:

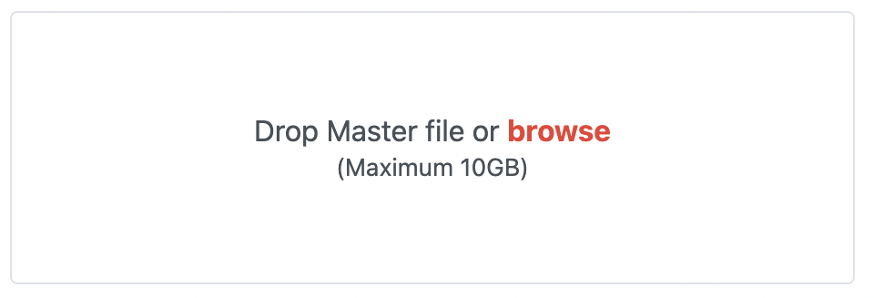

• Click the Drop Master File or browse button to select and upload the Master file you would like to compare. Alternatively, you can drag and drop the desired file.

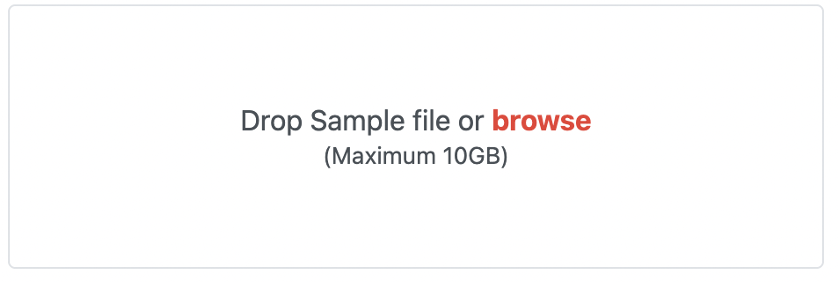

• Click the Drop Sample File or browse button to select and upload the Sample file you would like to compare. Alternatively, you can drag and drop the desired file.

• Click Upload Files. The files load in the Master/ Sample Preview panels.

Making sure your files are inspectable

Graphics Inspection supports the following file types:

PDF, and AI.

File must be under 20000 pixels by 20000 pixels.

Note: It is recommended that you load files with a maximum file size of 200 MB.
