IQ Flex - How to Oil Lid Hinge
Authored by: Kishor Patel
Created: 02-Jan-2021
Article Title | IQ Flex - How to Oil Lid Hinge |
Type (Procedural / Informational /Troubleshooting) | Procedural |
Software | N/A |
Software version | N/A |
Customer | N/A |
Case Number | N/A |
JIRA | N/A |
Article location (internal/external/both) | Both |
Summary: IQ Flex Scanners have a lid where the hinges need oiling to eliminate or reduce noise. Below is the step by step procedure on how to oil the hinges.

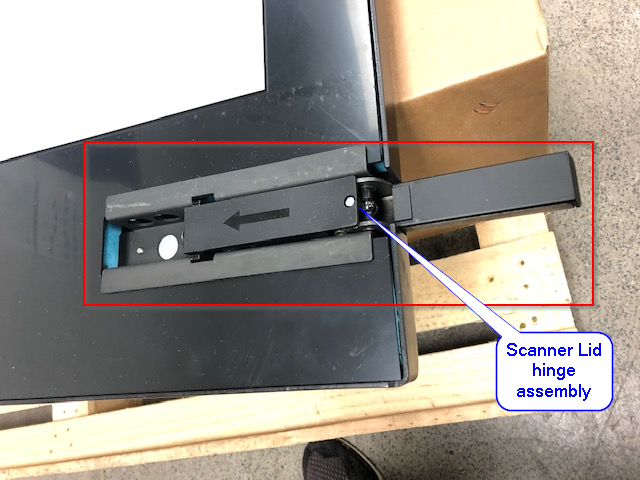

Image of the hinge assembly:

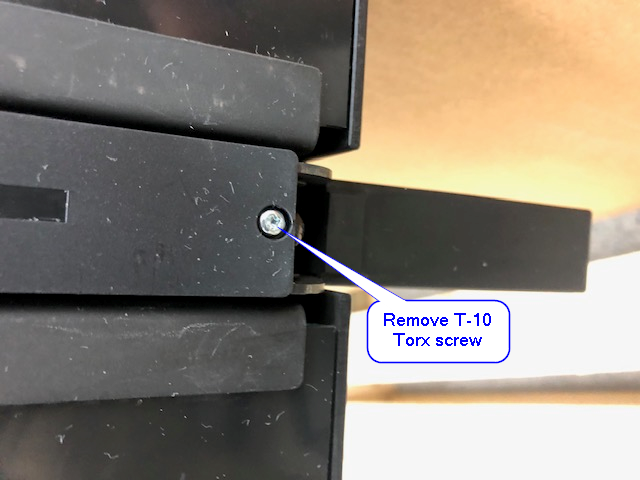

1. Remove T-10 Torx screw:

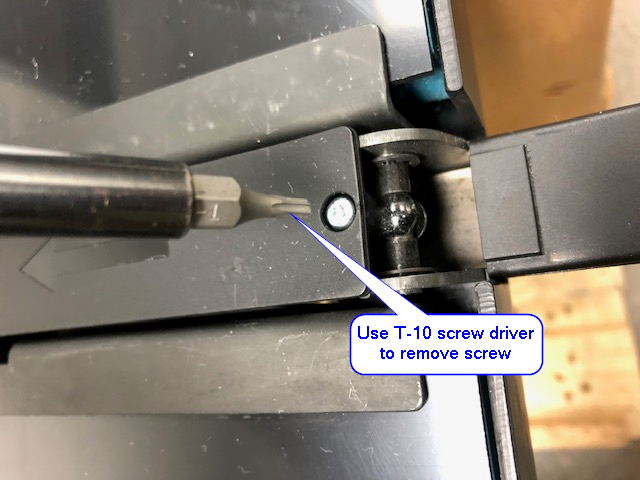

2. Use a T-10 screwdriver to remove the screw holding the hinge cover:

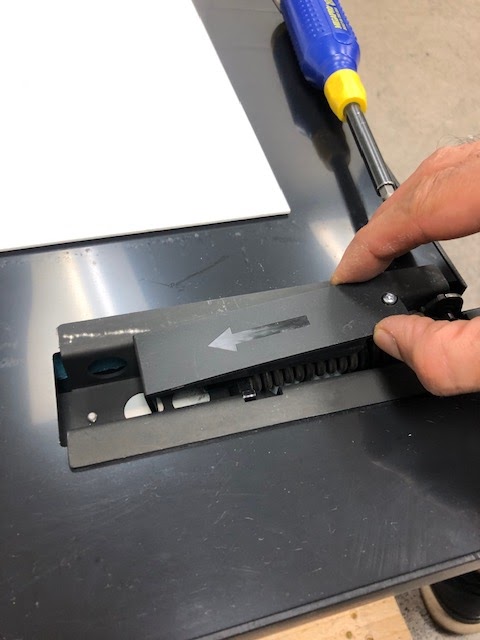

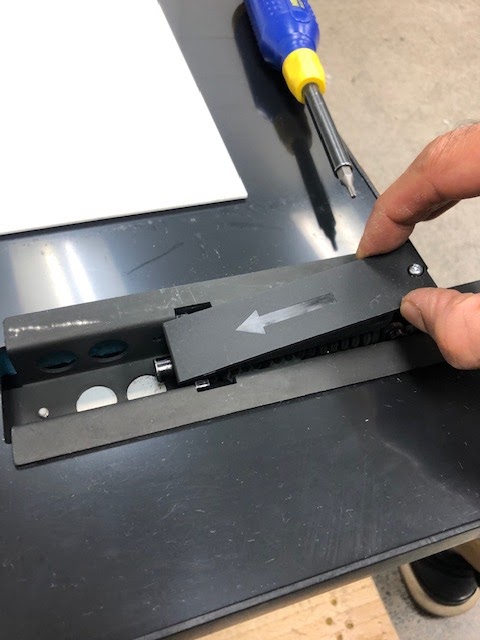

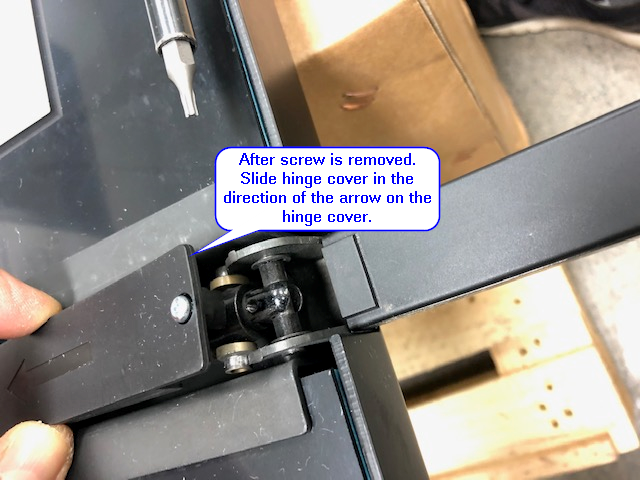

3. After the screw is removed. Slide-out the hinge cover in the direction of the arrow on the hinge cover:
4.
5.

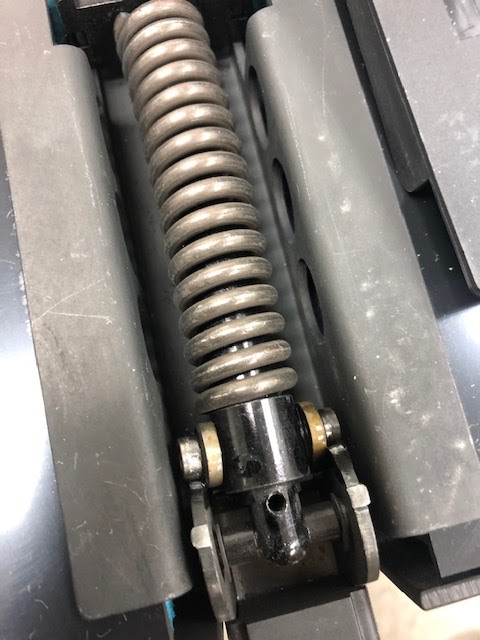

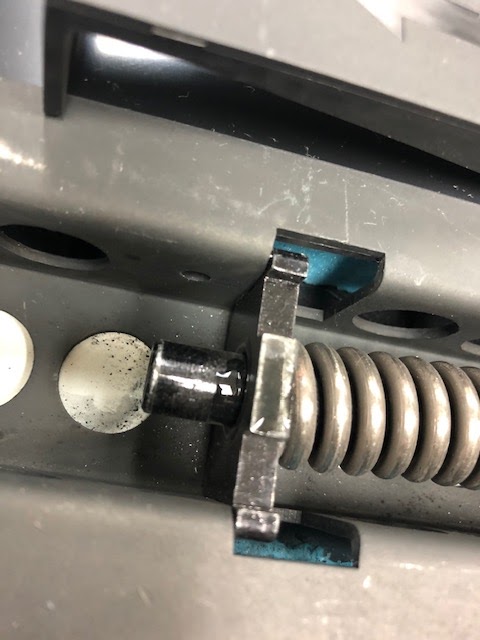

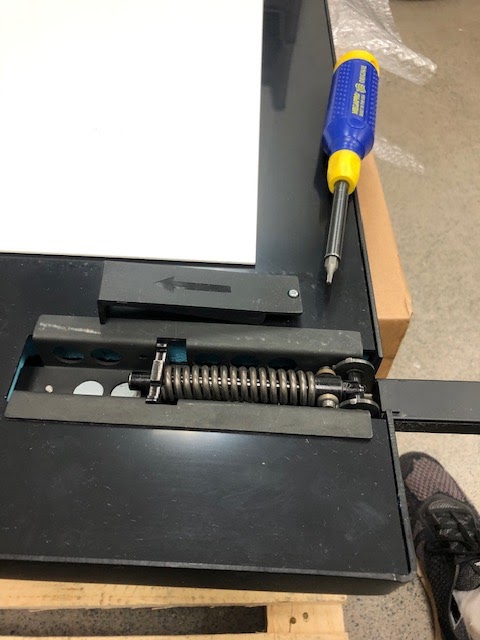

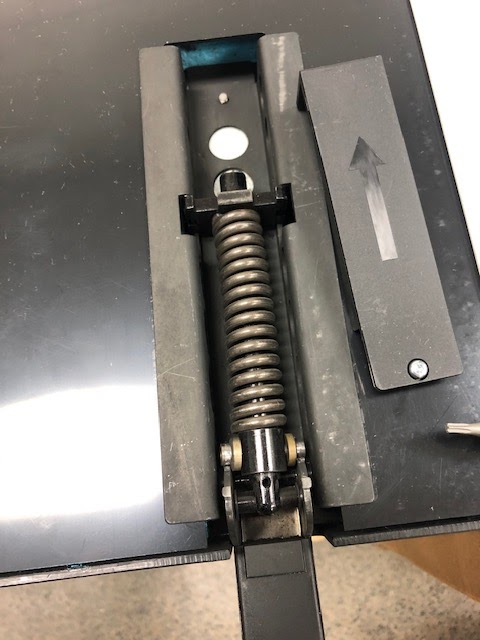

6. Hinge cover is removed:

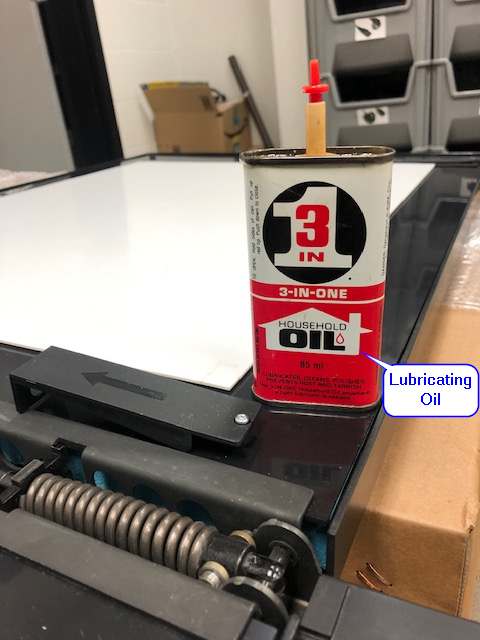

7. You will need a general-purpose lubricating oil:

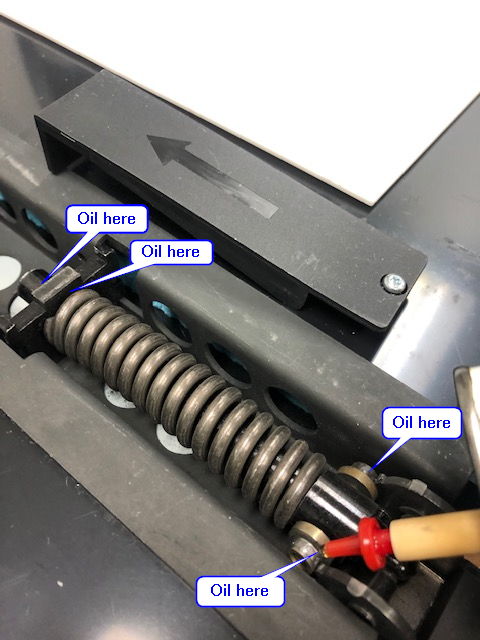

8. Apply 1-2 drops of oil on the four locations on the hinge:
9.
10:
11. Reinstall cover after applying oil to the hinge.
