NextImage - Using the Measure Tool to Fix Crooked Scans
Article Title | Identifying Problematic Fonts in a PDF |
|---|---|
Type | Informational |
Software | Nextimage |
Overview: Crooked scans can present issues within GlobalVision as the software may struggle to align the master and sample files. As a fix, the Nextimage software allows the scan to be realigned before it is imported into GlobalVision.

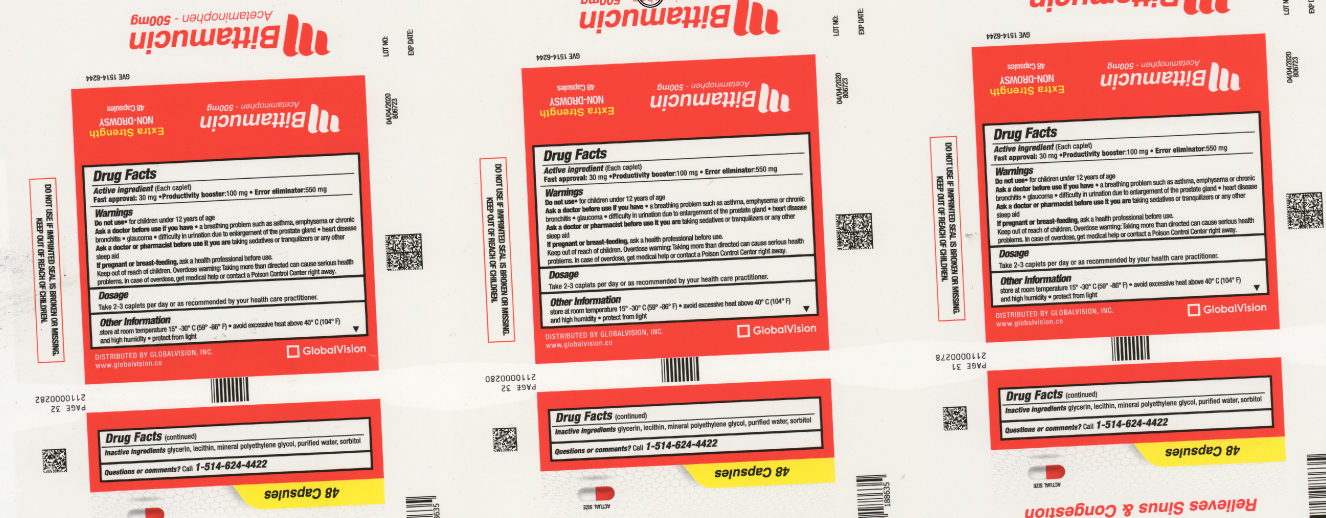

As seen below, a misaligned scan is easily identifiable in the Nextimage software:

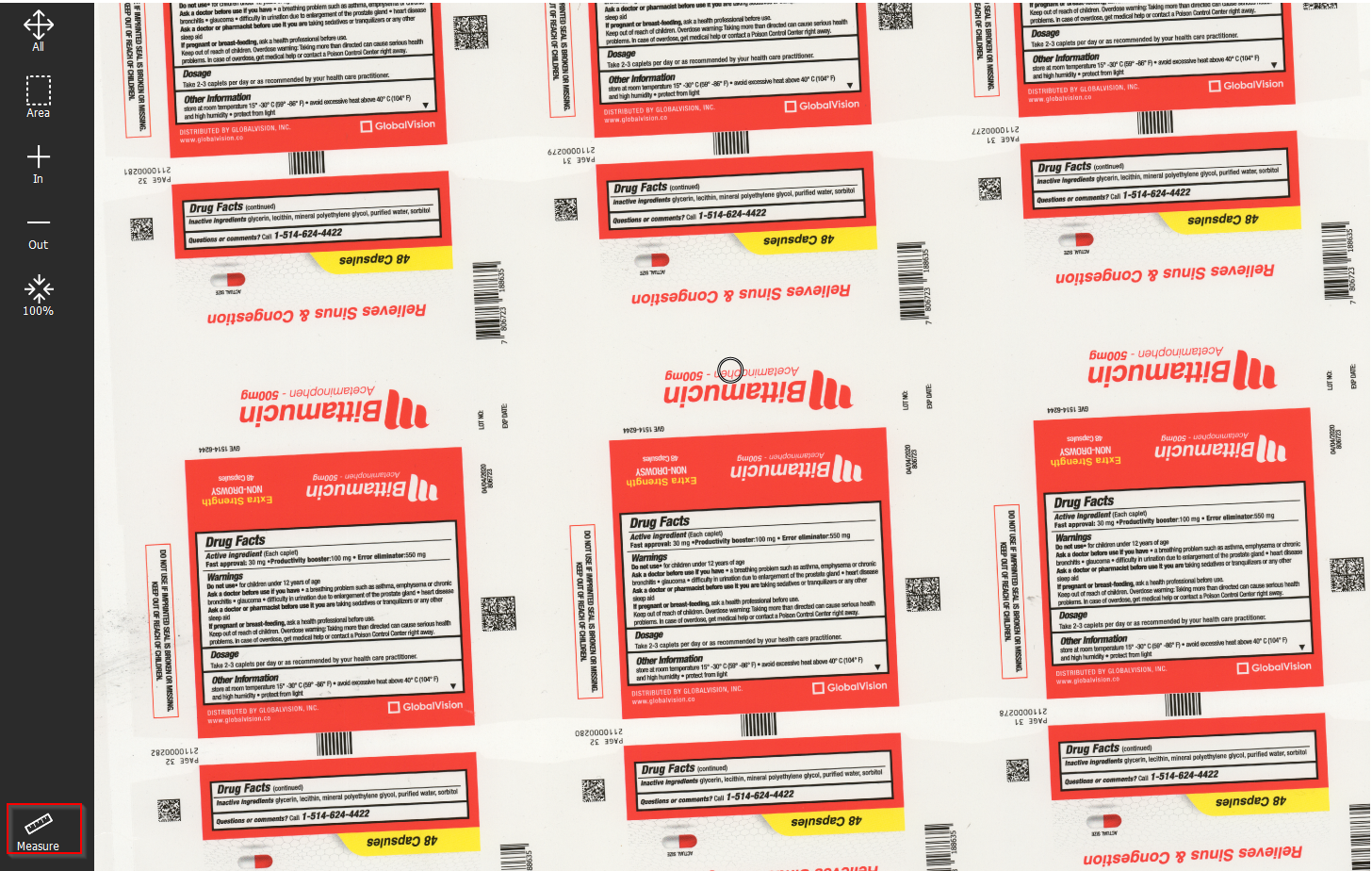

Select the “Measure” tool in the bottom left corner of the screen

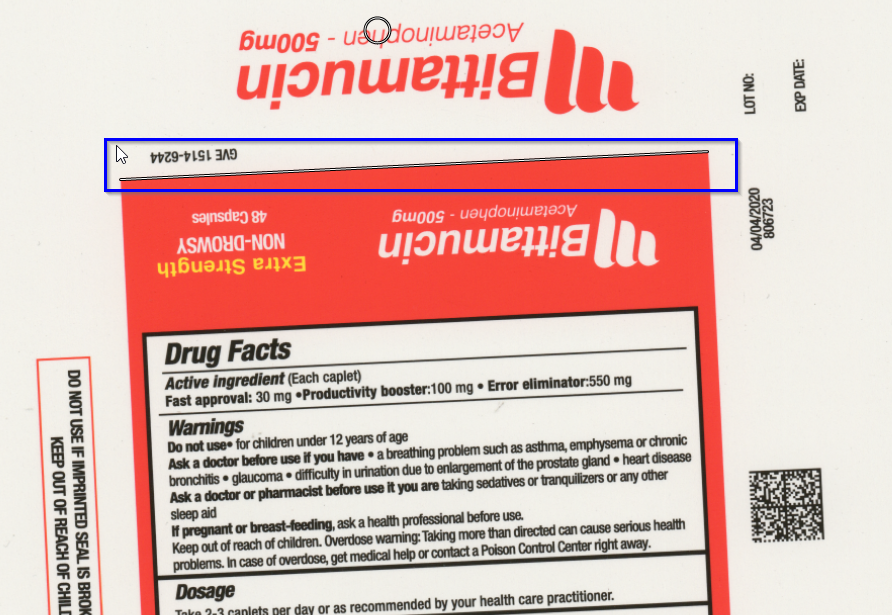

You will be prompted to draw a thin digital (white) line a straight edge of the scan. Here we chose the red edge of the carton.

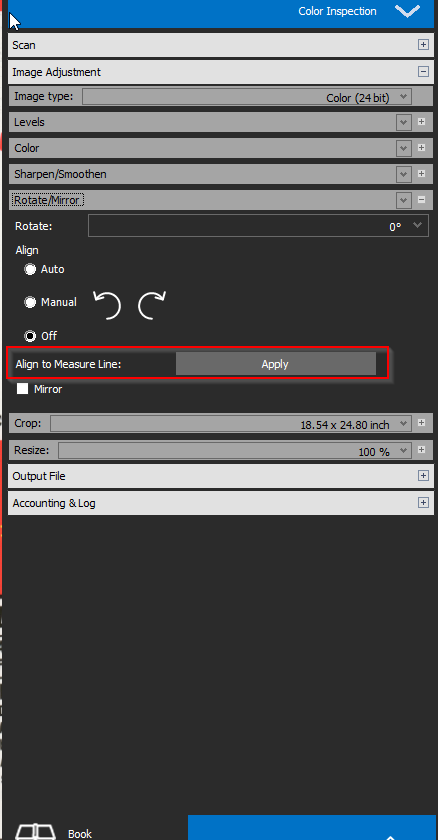

In the menu on the right side if the screen, navigate to Image Adjustment > Rotate/Mirror > Align to Measure Line and click “Apply”

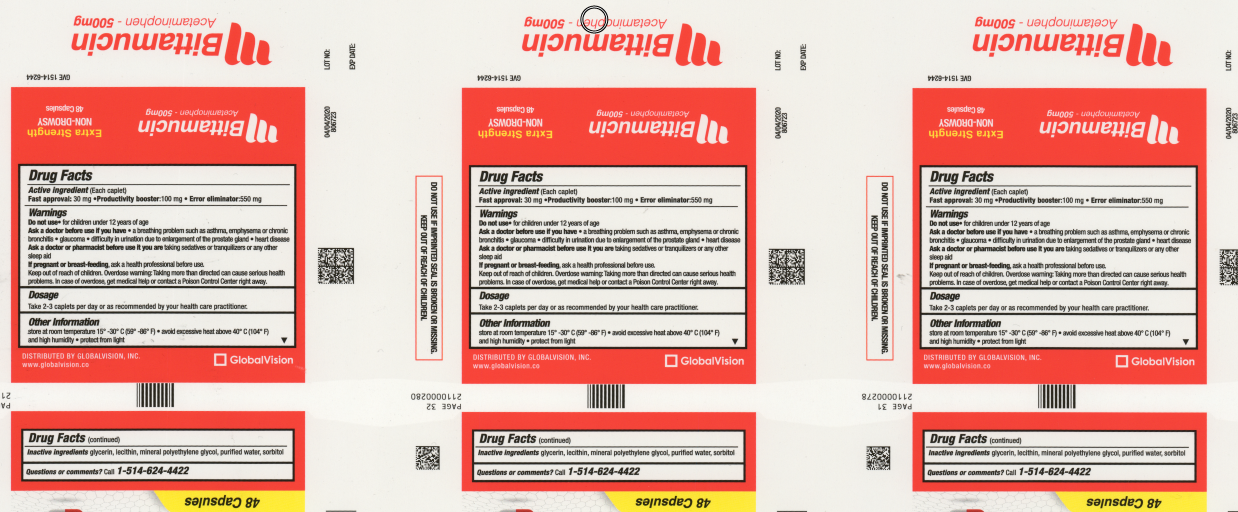

See the realigned scan which can now be imported to GV
